XT / 8XT Series
Simply the Best.
100 V transformers are an essential part of fixed installations. The possibility to connect many loudspeakers in parallel to a single amplifier and to have them galvanically separated is of undisputed significance. To save costs, however, low quality transformers are being used, that offer only low fidelity in the lower and higher frequency range.

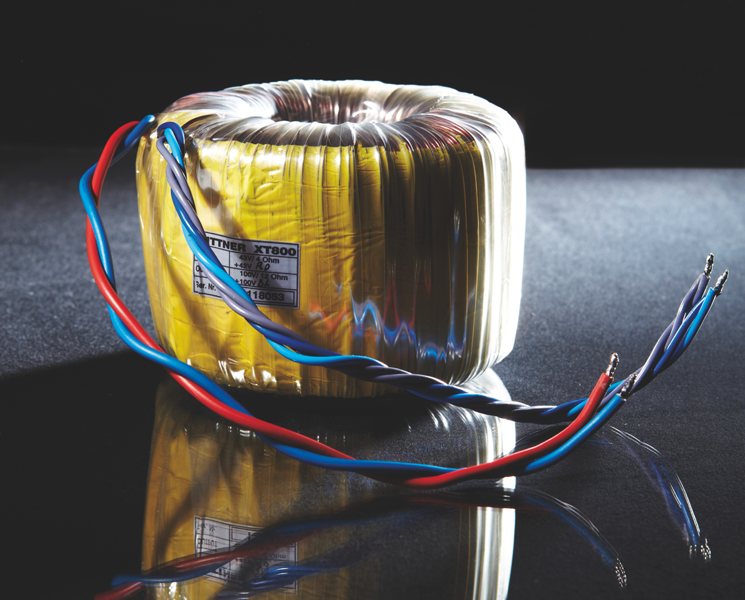

The XT transformers are being used in the Bittner XV series. Bittner quality is available in every single component.
- Sensible Power Granulation
- Ultra linear frequency response
- Flux free quality
- Small Size
- Clean and comprehensibly marked connectors
- Available as Single Transformer or in a 8-channel Chassis
8XT – The Ideal Pair!

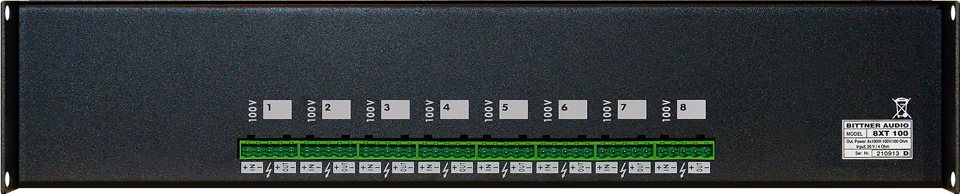

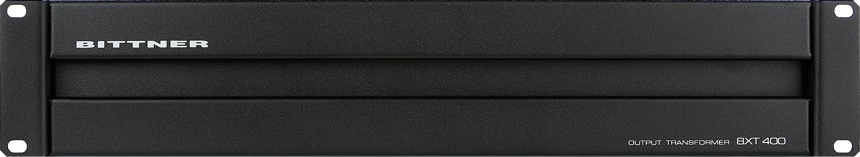

Bittner’s high quality transformers are now not only available as single transformers, but come in an 8 channel chassis with only 2 RU. They offer a superior value for money ratio and save precious time through clean and simple wiring.
Simply connect an 8X series amplifier to an 8XT multi-channel output transformer and you’ll be ready to meet our European norms and standards.
Technical Data
| XT | ||||||||
| 100 | 200 | 300 | 400 | 500 | 800 | |||
| Input Impedance | Ω | 4 | 4 | 4 | 4 | 4 | 4 | |
| Frequency Response | dB | 20 Hz | 0 | 0 | 0 | 0 | 0 | 0 |
| 20 kHz | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | ||
| THD | % | smaller | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| Dimensions | mm | Ø | 110 | 110 | 130 | 130 | 130 | 130 |
| height | 50 | 75 | 75 | 85 | 85 | 95 | ||
| Weight (net) | kg | 1.6 | 2.7 | 3.8 | 4.1 | 4.4 | 5.0 | |
| 8XT | |||||
| 200 | 400 | ||||
| Input Impedance | Ω | 4 | 4 | ||
| Frequency Response | dB | 20 Hz | 0 | 0 | |
| 20 kHz | -0,3 | -0,3 | |||
| THD | % | smaller | 0,08 | 0,08 | |
| Height | HE | 2 | 2 | ||
| Depth | mm | 454 | 454 | ||
| Weight (net) | kg | 30 | 45 | ||
